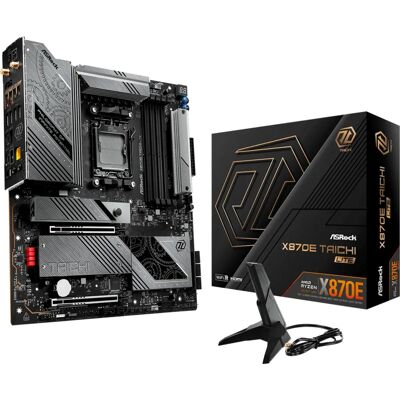

ASRock X870E Taichi Lite - Motherboard - Extended ATX - Socket AM5 - AMD X870E

ASRock X870E Taichi Lite is an Extended ATX motherboard for Socket AM5, designed around the AMD X870 chipset to support the latest Ryzen platforms and advanced connectivity.

This board natively supports AMD Ryzen 7000, 8000 and 9000 Series processors on the Socket AM5 platform, delivering compatibility for high-performance CPUs from AMD.

Memory support is modern and generous with four DDR5 DIMM slots supporting up to 256 GB of dual-channel DDR5 memory, ECC and non-ECC compatibility, and overclocked speeds up to 8000 MHz for extreme memory configurations.

Storage options are extensive, including three M.2 slots (one PCIe 5.0 x4 2280, one PCIe 4.0 2280, one PCIe 3.0 2280), six SATA III ports and a total of up to seven storage devices with RAID 0/1 support for redundancy or performance tuning.

Expansion and I/O are rich: an x16 PCIe Gen5 slot plus an x16 Gen4 slot, multiple USB ports including USB4 Gen 2x2, USB 3.2 Gen2 and Gen1, legacy USB2.0, HDMI 2.1 video output, 2.5 Gigabit Ethernet (Dragon RTL8125BG), and Wi‑Fi 7 (802.11be) with dual antenna jacks and Bluetooth 5.4 for wireless connectivity.

Cooling and system control features include two CPU fan headers, four chassis fan headers, one water-pump connector, RGB header, ATX 24‑pin and 12V connectors, an accessible Clear CMOS and Back-to-BIOS button, and UEFI AMI firmware with 256 Mbit BIOS memory for easy setup.

Audio and certification highlights include Realtek ALC1220 7.1-channel audio, HDMI 2.1 for modern displays, FCC and CE certifications, and ErP/EuP readiness. The board ships in black in an Extended ATX form factor (305 x 244 mm) with included SATA cables and Wi‑Fi antenna.

Use cases: build a high-end gaming rig with PCIe Gen5 GPU support and Wi‑Fi 7 for ultra-low latency online play, assemble a content-creation workstation leveraging massive DDR5 capacity and fast M.2 storage, or configure a compact server-like desktop with RAID storage and ECC memory support for data integrity.

• Socket AM5 for Ryzen 7000/8000/9000 Series
• 4x DDR5 DIMM, up to 256 GB, 8000 MHz, ECC support
• 3x M.2 slots, 6x SATA III, RAID 0/1
• Wi‑Fi 7, Bluetooth 5.4, 2.5 GbE
• PCIe Gen5 x16 + Gen4 x16 expansion
