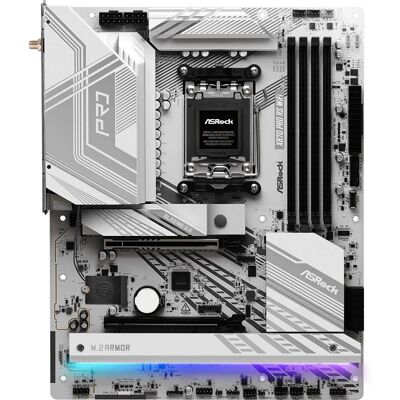

ASRock X870 Pro RS WiFi Motherboard - AMD AM5 - DDR5 - ATX

ASRock X870 Pro RS WiFi Motherboard - AMD AM5 - DDR5 - ATX is a high-performance AM5 motherboard built for the latest Ryzen platforms and ready to power desktops today.

This motherboard supports AMD Socket AM5 processors and is compatible with AMD Ryzen 7000, 8000 and 9000 Series CPUs, giving you broad upgrade paths for years to come. The board uses the AMD X870 chipset and a UEFI AMI BIOS with 256 Mbit memory for stable, modern firmware control.

Memory support is excellent, with four DIMM slots for DDR5-SDRAM in dual-channel configuration, ECC and non‑ECC compatibility, and support for up to 256 GB at speeds up to 8000 MHz when paired with appropriate modules. Unbuffered memory is supported to keep enthusiast builds responsive and fast.

Storage options include three M.2 slots (one PCIe 5.0 x4 2280, one PCIe 4.0 2280 and one PCIe 3.0 2280), plus four SATA III connectors for HDDs or SSDs, supporting up to seven drives in total. Hardware RAID 0 and 1 are available for redundancy or performance needs.

Expansion and connectivity are robust: one PCIe 5.0 x16 and one PCIe 4.0 x16 slot, multiple fan and pump headers (2 CPU fan, 4 chassis fan, 1 water pump), three RGB headers, and a full complement of USB ports including USB4 Gen 2x2, USB 3.2 Gen1 and USB 2.0. The board includes a 24-pin ATX power connector and the required EPS/8‑pin and 12V connectors for stable power delivery.

Networking and audio are premium: integrated Wi‑Fi 7 (802.11be) with two antenna jacks and included antenna, Bluetooth 5.4, a 2.5 Gigabit Ethernet controller (Dragon RTL8125BG), HDMI 2.1 output and Realtek ALC1220 7.1‑channel audio with S/PDIF out and front panel audio support. The board also includes convenient features like a Back-to-BIOS button and passive cooling for chipset stability.

This white ATX motherboard is ideal for gamers, content creators and workstation users who need fast storage, high memory capacity, the latest wireless standards, and flexible expansion. Typical use cases include high-refresh gaming rigs with PCIe 5.0 GPUs, multi-drive content storage/editing PCs, and compact workstations using advanced Ryzen CPUs.

Key selling points: modern AM5 compatibility across multiple Ryzen generations, DDR5 up to 8000 MHz and 256 GB, PCIe 5.0 M.2 support, Wi‑Fi 7 and 2.5 Gb Ethernet, Realtek ALC1220 audio, extensive cooling and power headers, and a clean white ATX design ready for enthusiast builds.

• Socket AM5 for Ryzen 7000/8000/9000 Series
• 4x DDR5 DIMM slots, up to 256 GB, 8000 MHz
• 3x M.2 slots including PCIe 5.0, Wi‑Fi 7 & 2.5 GbE
