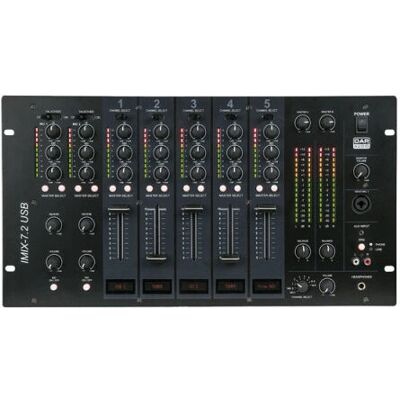

Introducing the DAP-Audio IMIX-7.2 USB Fixed Installation Mixer, the perfect audio solution for a variety of settings, available since its release. This innovative mixer is designed for permanent installation, making it an ideal choice for restaurants, schools, and small discotheques. With its user-friendly interface and robust features, the IMIX-7.2 offers an unparalleled audio experience.

The DAP-Audio IMIX-7.2 features a 6U design with 7 channels, allowing for precise control over two distinct audio zones. Its sleek design is complemented by 2 built-in USB ports, providing flexibility for various audio sources. One of the standout features of this mixer is the display that indicates the active signal source for one channel, a first in the market, simplifying source selection for each zone.

The mixer is equipped with individual VU meters for each input and output, ensuring you have a comprehensive overview of all audio levels. This allows for seamless monitoring and adjustment of sound levels, which is crucial in busy environments. Additionally, the gain control for channels is conveniently located on the rear panel, helping to prevent accidental adjustments by inexperienced users.

With 16 pre-programmed source names available on the display, installation is a breeze. The IMIX-7.2 also includes 2 microphone inputs, as well as a line input and a dedicated phono/MP3 input conveniently located on the front panel. This makes it easy to connect various audio devices, ensuring versatility in your audio setup.

Whether you are hosting a lively event or setting the atmosphere at a restaurant, the DAP-Audio IMIX-7.2 offers essential features to enhance your audio experience. The headphone control allows for easy monitoring of all inputs and outputs, making it an invaluable tool for sound engineers and DJs alike.

Key Features:
Displays indicating the input source for each channel
2 integrated USB audio interfaces for versatile connectivity
VCA controlled controllers for precise audio adjustments
Reverberation effect and crosstalk function on microphone channels
Individual VU meters for all inputs and outputs
Recessed connections eliminate the need for additional height units

In terms of technical specifications, the IMIX-7.2 boasts:

Input channel types: 2 x microphone (XLR/jack), 8 x line (RCA), 2 x phono (RCA), 1 x Phone (3.5mm jack)
Output channel types: 2 x master balanced (XLR), 1 x Master (RCA), 1 x monitor (RCA), 1 x headphones (6.3mm jack)
Display indications for various audio sources
USB interfaces supporting 48Khz, 16bit with Plug & Play for Windows and MAC
Channel EQ and Mic EQ settings for tailored audio adjustments
Frequency response: 20Hz - 20Khz
Distortion factor: <0.05%
Dimensions: 481 mm x 266 mm x 135 mm (LxHxD)
Power supply: 110-230V AC, 50/60Hz
Power consumption: 32 watts
Weight: 6.4 kg

In conclusion, the DAP-Audio IMIX-7.2 USB Fixed Installation Mixer is an essential tool for anyone looking to elevate their audio experience in a professional or commercial setting. With its user-friendly design, advanced features, and versatility, it is sure to meet the audio requirements of any venue.
