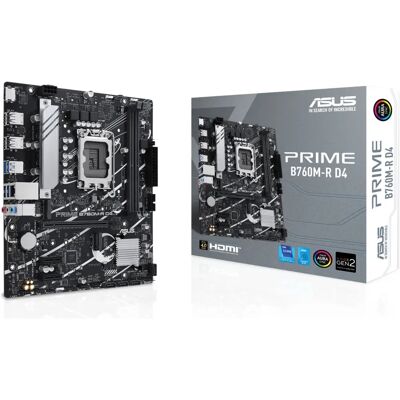

ASUS Prime B760M-R D4 Motherboard - Intel LGA1700, DDR4, Micro ATX

ASUS Prime B760M-R D4 Motherboard brings reliable performance to micro ATX builds with support for Intel LGA1700 processors and DDR4 memory, offering a versatile platform for modern desktops.

This motherboard is built around the Intel B760 chipset and accommodates LGA 1700 sockets compatible with Intel Core i3, i5, i7 and i9 12th and 13th Gen processors, and provides broad compatibility with many 14th Gen Intel Core CPUs as well. The board supports dual-channel DDR4 DIMMs and a maximum of 64 GB of memory across two slots.

Memory support is extensive, with DDR4 speeds supported from 2133 MHz up to 5333 MHz (OC), and the board accepts unbuffered, non-ECC DIMMs. For storage, the Prime B760M-R D4 offers two M.2 slots and four SATA III connectors, allowing up to six drives in total and hardware RAID levels 0, 1, 5 and 10 for flexible and redundant storage configurations.

Expansion options include one PCIe x16 (Gen4) slot for a discrete GPU and two PCIe x1 (Gen4) slots for add-in cards. Networking is handled by a 2.5 Gigabit Ethernet LAN port, while onboard audio delivers 7.1-channel sound. Video output is supported via an HDMI 2.1 port for modern displays.

Connectivity covers both internal and external needs with multiple USB ports (four USB 2.0 and four USB 3.2 Gen1 Type-A on the rear, plus internal headers), front panel audio, TPM header, RGB LED pin header, multiple fan connectors and standard ATX and 8-pin EPS power interfaces. The passive cooling design helps keep regulation simple and quiet in compact cases.

This micro ATX motherboard measures 244 x 211 mm and comes in a black finish that fits many builds. It supports Windows 10 and Windows 11, includes SATA cables in the package, and uses a UEFI AMI BIOS with 128 Mbit memory for firmware storage.

Use cases include a compact gaming PC with a mid-range or high-end Intel CPU and one fast NVMe drive, a home office workstation with RAID storage for data safety, or a small media PC benefitting from HDMI 2.1 and 7.1 audio. Key selling points are strong CPU compatibility, dual M.2 support with RAID capability, 2.5Gb Ethernet, and solid expansion in a micro ATX form factor.

• Intel LGA1700 socket supporting 12th–14th Gen Intel Core CPUs
• Dual-channel DDR4, up to 64 GB and 5333 MHz (OC)
• 2× M.2 + 4× SATA III with RAID 0/1/5/10 support
• 2.5 Gb Ethernet, HDMI 2.1 and 7.1-channel audio
• Micro ATX form factor with passive cooling and RGB header
